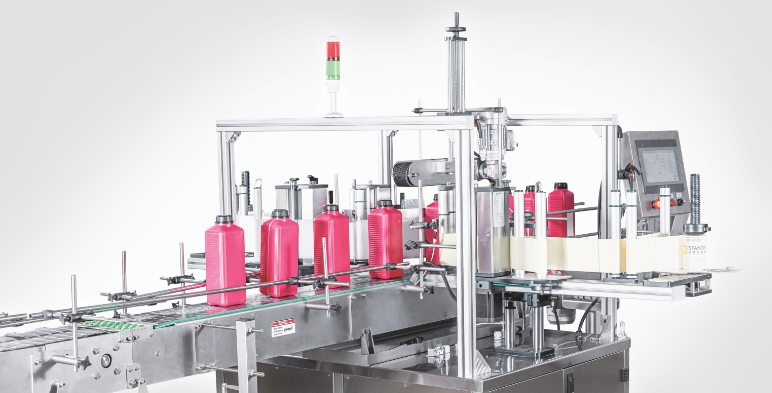

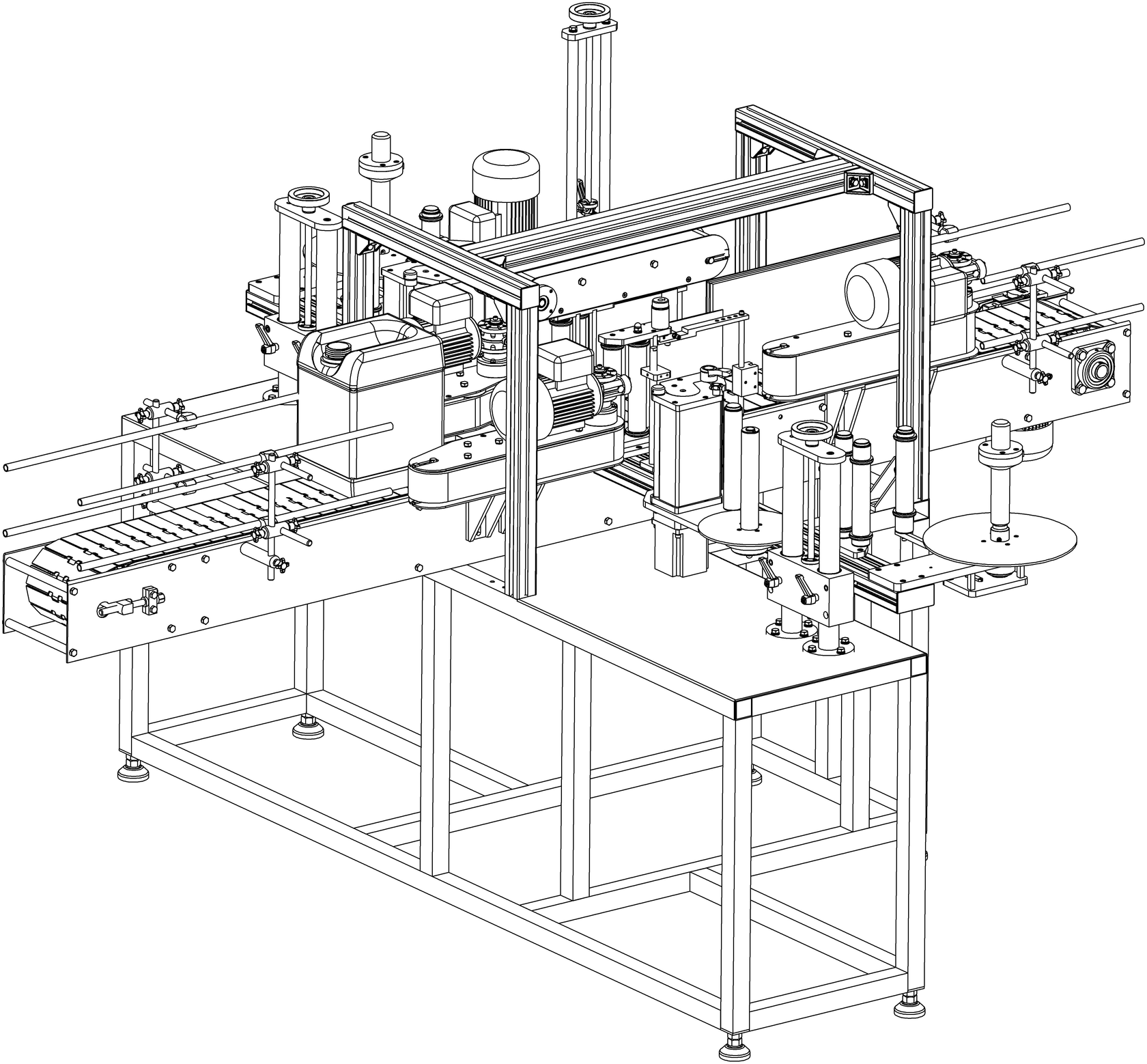

AUTOMATIC LABELING MACHINE
It is used for application of self-sticking label
to сylindrical, rectangular and oval containers.
CONFIGURATIONS:
Type of label: self-sticking, in a roll

Capacity: up to 350* cpm
* Providing conveyor top speed and distance between bottles 200 mm

Number of labelers: 2

Actuator: electric

Power supply:
— voltage: 220 V
— frequency: 50 Hz

Power consumption: up to 1,9 kW

Overall dimensions: L2000xW2300xH1700 mm

Weight: 245 kg

Materials: AISI 304, alloy 2024.
SPECIFICATIONS:

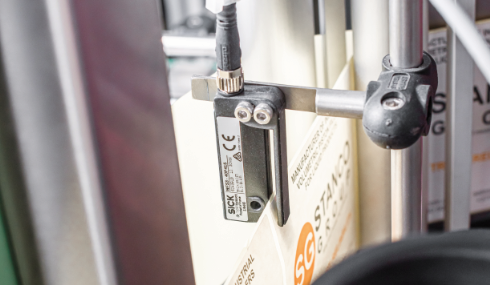

It provides operation of the labeler.
May be of two types:
— optical sensor (for opaque label)
— ultrasonic sensor (for no-label look application).
LABEL SENSOR

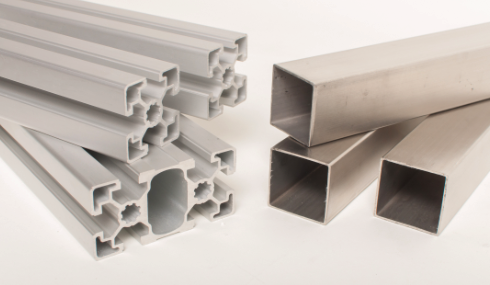

It is manufactured of stainless steel with structural parts made of aluminum with anodic coating.
FRAME
It is used to apply the labels to сylindrical containers.
WRAP-AROUND LABELER
removes label from body paper and applies it to the container. It may be manufactured in two dimension-types
depending on the label height (150 mm/250 mm).

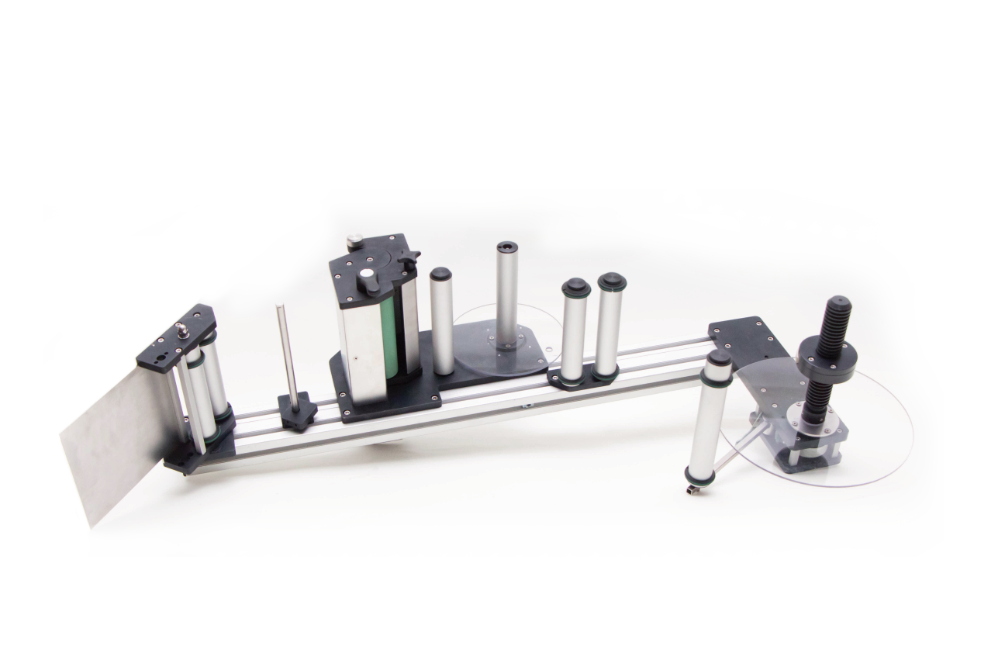

LABELER

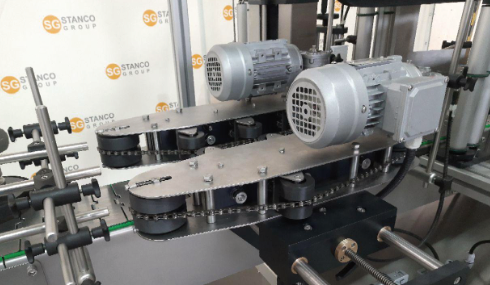

It provides steady position of oval containers.
CONTAINER ALIGNMENT SYSTEM

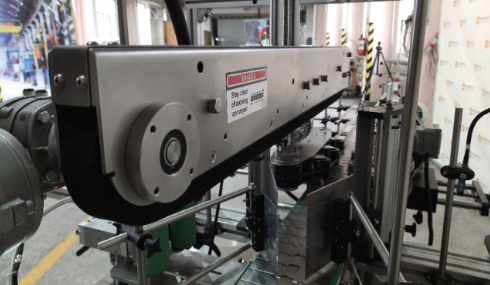

It provides unsteady containers holding while labeling.
HOLDING CONVEYOR

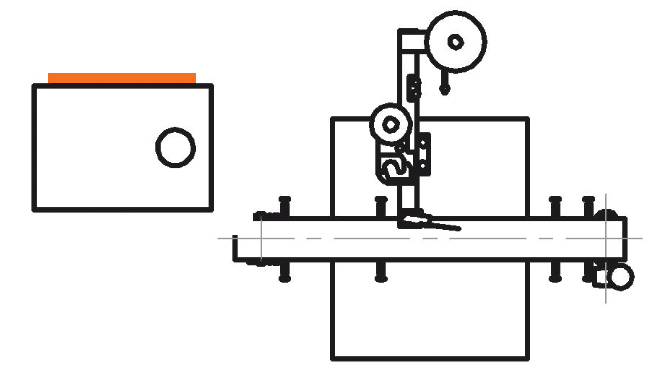

Rectangular/oval containers (1 label)

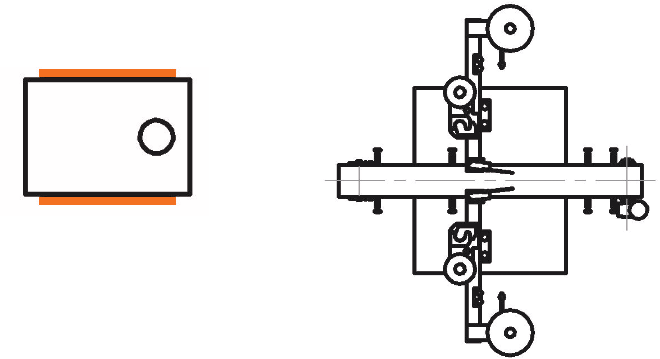

Rectangular/oval containers (front label and back label)
Rectangular/oval/cylindrical containers (front label and back label)
Rectangular/oval/сylindrical containers (1 label)
